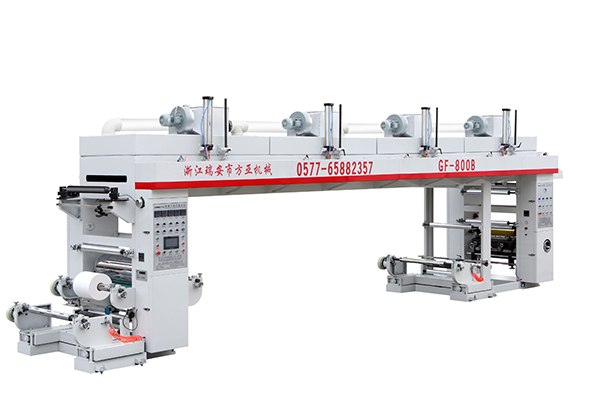

GF-800B高速干式氣壓復合機

Application: This machine is suitable for the double-layer or multiple-layer lamination of such roll film material as BOPP, PET, nylon, CPP, CPE, aluminum foil and paper, etc.

Feature:

1.Coating and laminating of main machine are of double-shaft synchronous frequency conversion and feedback control.

2. Thickness of glue coating can be chosen by mesh of anilox roller and doctor blade.

3. Auto tension controller for three section constant tension control.

4. Turret type unwinding station, pre-tension control for non-stop shaft exchange.

5. Unwinding station equipped with EPC system.

6. Turret type rewinding station, pre-tension control for non-stop shaft exchange

7. Movable doctor blade with pneumatic back pressure.

8. Three independent constant temperature section drying system with heating tube and strong air fans for air in feeding and exhaust, to ensure the full dryness of web.

9. Pneumatic lifting drying channel and operating platform for web passing active synchronous running leading roller inside drying channel.

10. Pre-heating before laminating, water cooling roller for laminated web

11. Inflatable Air Shaft for web loading/unloading.

12. Three rollers nip laminating method, laminating pressure more even to ensure higher peel strength.

用途:該機適用于BOPP、PET、PVC、PE、鋁箔、紙張等 卷狀薄膜材料兩層多次復合,生產高強度,高保鮮、耐蒸煮等 高Pin質包裝材料。

主要特點

1、主機涂布和復合為雙軸同步變頻及反饋。

2、膠涂厚薄由刮刀及網紋輥網線來選擇。

3、整機三段張力控制,全部采用全自動恒張力控制系統。

4、放料雙工位機架,換軸預置張力。

5、放料采用自動糾偏系統。

6、收料力矩電機控制。

7、移動式刮刀,氣動背壓裝置。

8、三段獨立恒溫加熱管加熱熱風系統,吸排風裝置,進排風 風力強勁,干燥徹底。外加熱帶循環。

9、氣頂式烘箱及穿膜操作平臺,烘箱內導輥主動同步運轉。

10、復合基材預熱裝置,復合成品冷卻裝置。

11、氣脹式收放卷軸。

12、復合采用三輥壓合方式,壓力更均勻,復合更牢固。

主要數據參數

Main Technical Variables
